Elegant jack wheel for use in narrow build-in situations
Type: SHV4-01
Part number: 011-06031
New nice, simple and elegant jockey for Porta Kabins, trailers, scaffoldings, platforms, etc. where there is no possibility of turning the handle on the top.
SHV4-01 can also be used, design-wise, as the basis for customized solutions for OEM manufacturers.
Spindle stroke: 200 mm
Outer tube: 60x60x4 mm
Inner tube: 50X50X3 MM
Spindle: TR22X5 MM
Gear ratio: 1:1
Surface treatment: Blue electro galvanised passivated
Wheel: 1 pcs. Pneumatic wheel Ø260x85 mm
Consoles: KF1, KF2, KF4 and KF5
Load capacity: Max 275 kgs @ 16 km/h
Spare parts drawing
Jack wheels primarily used for winter service in the snow should generally run with pneumatic rubber tires, as they easily release the snow. In addition, it provides a more comfortable ride. Pneumatic wheels have a more cost favorable basis than solid rubber wheels.

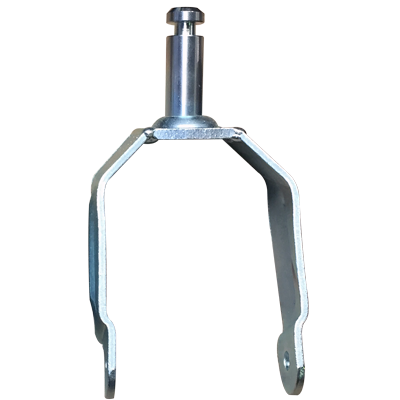

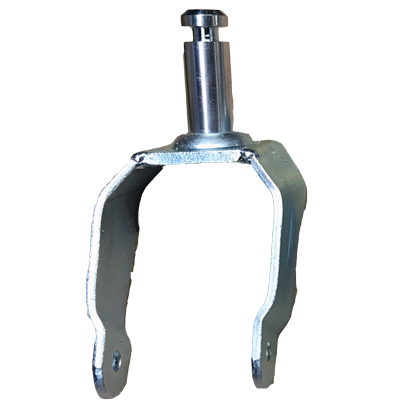

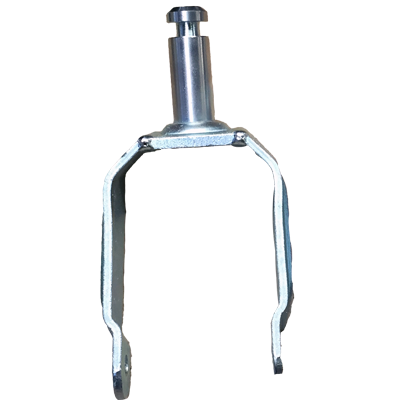

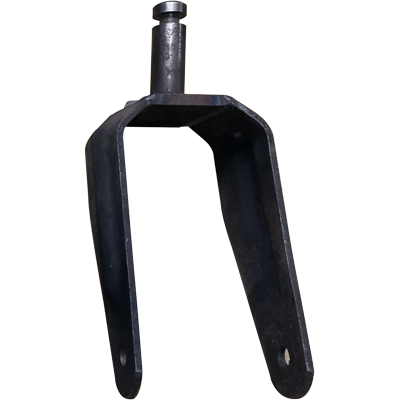

The jack wheel is shown with a 10” fork, but is also available with forks in sizes: 8", 10", 12", 13" and even also in 16"
Please contact us to be advised about the possibilities.
Shall the support wheel be welded onto the machine and / or must be the same color as the machine, then select the support wheel with red Rapitix primer coating.
# All our jack wheels are fitted with spindles with roller thread which is 100 % greased during the assembling!
