STV4-01Jack leg with gear
Type: STV4-01
Item no.: 003-06007-1

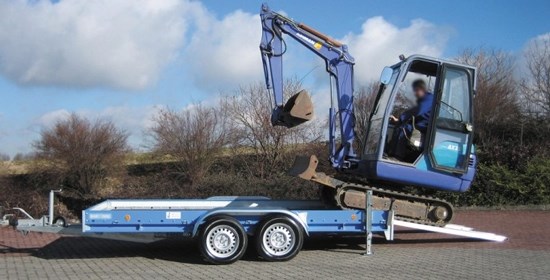

Elegant jack leg with gear for trailers, portable cabins, platforms etc were spaces are narrow.
STV4-01 can also be customized for OEM customers.
Jack leg 60 x 60 mm with fixed foot plate and vertical crank handle.
Spindle stroke: 200 mm
Outer tube: 60x60x4 mm
Inner tube: 50x50x3 mm
Foot plate: Ø 150 x 6 mm
Spindle: Tr22x5 mm
Gear ratio: 1:1
Surface trreatment: Blue electro galvanised passivated
Consoles: KF1, KF2, KF4 and KF5
Load capacity: 1600 kg.
Spare parts drawing
