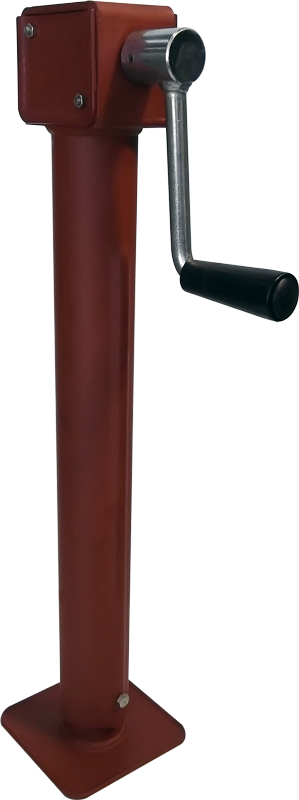

STV2-01 Jack leg with gear and horisontal crank handle
Type: STV2-01
Item no.: 003-07002-6
Spindle stroke: 380 mm
Outer tube: ø70 mm
Inner tube: ø60 mm
Foot plate: 150x150 mm
Spindle: TR28x5 mm
Gear ratio: 1:1
Surface treatment: Rapitix primer coating – oxide red
Consoles: K1, K2, K3, KH1 and M1
Load capacity: 3500 Kg.
Measure sketch
Spare parts drawing
